Lift Spare Parts- Prosis Input 60V UPS Output 220V- Vimatek Elevator

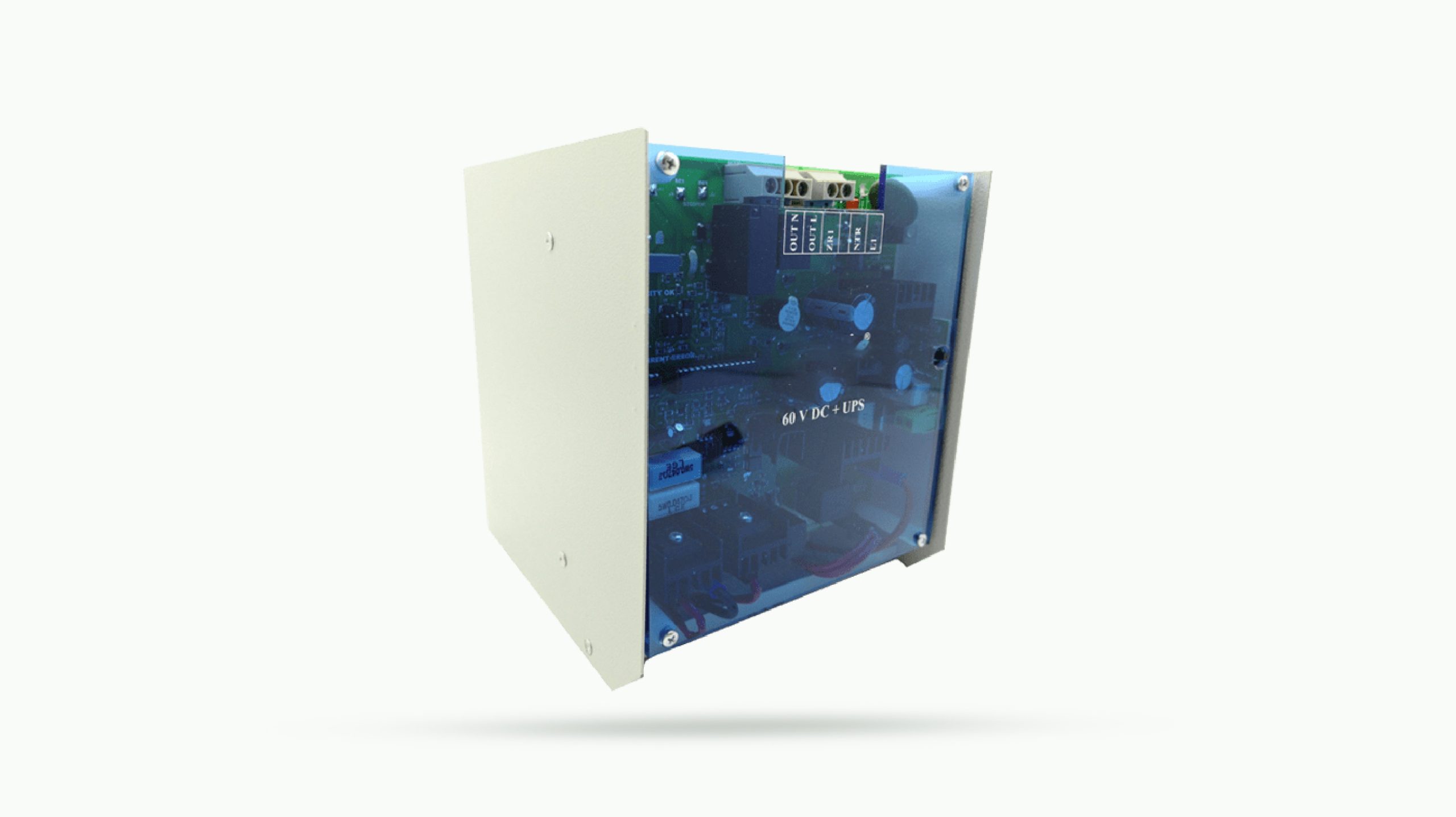

PUK60 is used to lower the cabin to the floor and evacuate for inverters compatible with 60 VDC voltage input.

It is a 600 VA UPS output power supply, used by connecting 5 pieces of 12V/7Ah (60V/7Ah) batteries.

1. PUK60 starts supplying (with power from batteries) the control cabinet and elevator doors as soon as the 220 VAC main supply is cut. When the evacuation contactor is closed, it starts supplying 60 VDC to the inverter power inlets and the evacuation process begins. PUK60 provides UPS output for 5 minutes. A buzzer sound will be heard during the process, and just before the end of evacuation, the sound will change to indicate that it is finishing. Then it cuts the UPS output and keeps the batteries safe.

2. When the main supply is on again, PUK60 starts supplying the control cabinet with the main supply and charges the batteries.

3. There are W type circuit breakers for both the battery circuit and the 220 VAC circuit which help with easier maintenance and safety.

4. PUK60 output is short circuit and overload proof. When it occurs, PUK60 keeps the system safe by cutting the output and the indicator LED flashes.

5. Main supply and battery status can be checked through indicator LEDs.

6. In addition to OUTL UPS output, there is also a ZR contact output with a 9-second delay.

Box Weight: 6.70 kg
Box Dimensions: 22×19.2×20 cm³
Box Units: 1 Unit
