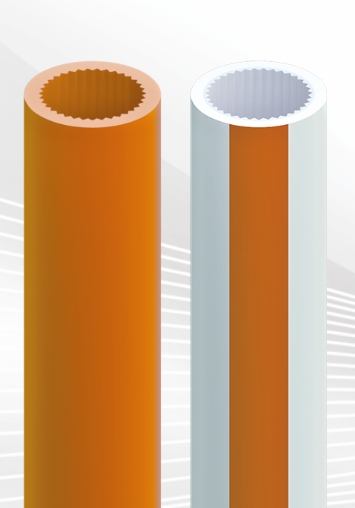

Microduct Single

Microducts are small diameter conduits ranging from 5-22 mm OD that provide a pathway for fiber cables. They are suitable for use in network applications such as FTTH (Fiber to the Home), FttB (Fiber to the Building), FttC (Fiber to the Curb), or the last mile.
Product Specifications
Outer Diameter (mm)	5
Inner Diameter (mm)	3.5
Microduct Min ID (mm)	3.4
Wall Thickness (mm)	0.75
Weight (kg/km)	9.5
Bend Radius (mm)	100
Cable Fill Ratio Low to High (%)	25 - 50
Packing Information
Reel Size (mm)	600 x 475
Standart Length (m)	1500
Reel Type	Plywood
Reel Size (mm)	550 x 500
Standart Length (m)	1500
Reel Type	Plywood
