Microduct Multi

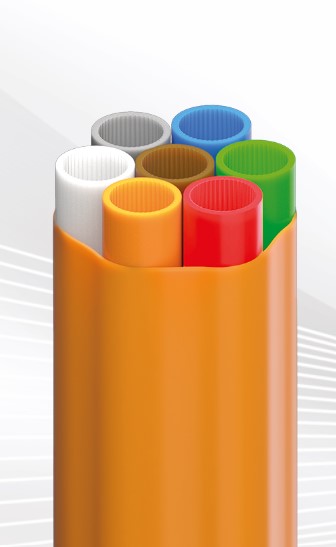

Microduct Multi pipe is a bundle of pipes composed of several Microduct Single pipes. They are suitable for direct buried installation and for inserting or pushing into cable shafts, into HDPE Ducts or other pipe systems. Microduct Multi pipes can be used in construction sites such as open cut, Micro Trenching, Mini trenching, and HDD.
Product Specifications
Nominal OD (mm)	16.0 x 9.0
Weight (kg/m)	0.097
Sheath Thickness (mm)	0.9
Microduct Size (mm)	7/3.5
Microduct Min ID (mm)	3.4
Bend Radius (mm)	320
Packing Information
Reel Size (mm)	1150 x 550
Standart Length (m)	2000
Reel Type	Metal
Test Compliance
Tensile Performance	IEC 60794-1-2 E1
Bending Radius	IEC 60794-1-2 E11
Crush Test	IEC 60794-1-2 E3
Kink Test	IEC 60794-1-2 E10
Impact Test	IEC 60794-1-2 E4
Pressure Withstand	IEC 60794-1-2 F13
Inner Clearance Test	IEC 60794-1-21 Annex E
Temperature Range
Operation	-20 to 60°C
Transport and Storage	-10 to 50°C
Installation	-10 to 50°C
